DL5.0C Pro Sales AreaGlobal (Excluding North America\Australia\Ukraine) Diversion Control Check

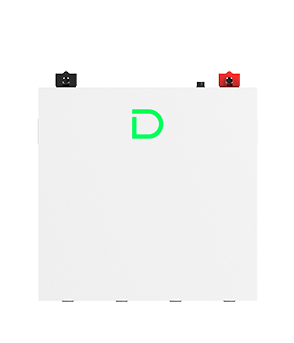

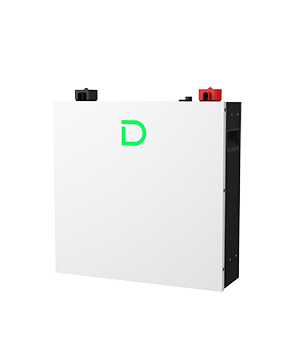

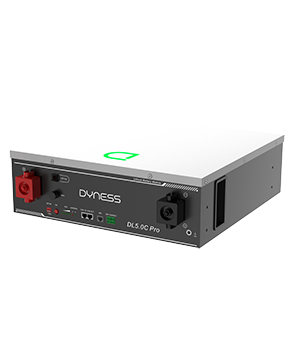

DL5.0C Pro
- 5.12 kWh
- Up to 50 units in parallel
DL5.0C Pro is suitable for residential and small commercial and industrial scenarios, with up to 50 units in parallel and an energy range from 5.12 kWh to 256 kWh.High cycle times and security ensure users' electricity freedom and safety.
Product Features
-
Flexible Expansion
Up to 50 units in parallel, 5.12kWh--256kWh capacity. -
Easy Installation
Support wall-mounted, floor-mounted installations, high space utilization. -
Ultra Safe
Intelligent fire extinguishing system, detects and extinguishes a fire in 5s(optional). -
1C Discharge
Simultaneously supplying power to multiple loads, no need to worry about power outages. -
Automatic Self-heating
-20°C to 55°C operating temperature (optional). -
Smart Management
Real-time system monitoring, remote control, OTA updates.
Technical Specifications
-
Product Model DL5.0C Pro
Battery Type LiFePO4 Nominal Battery Energy 5.12 kWh Net Weight 46 kg Dimension[W*D*H] 488*515*150mm
Cycle Life ≥6000 Cycles Protection Level IP20 Expansion Up to 50 units in parallel

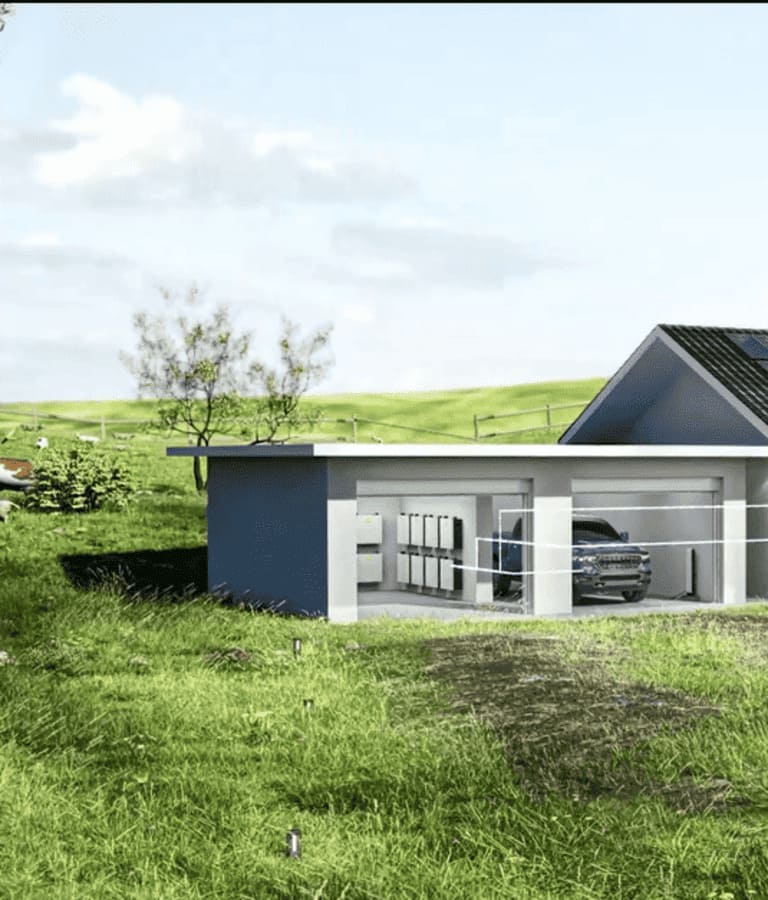

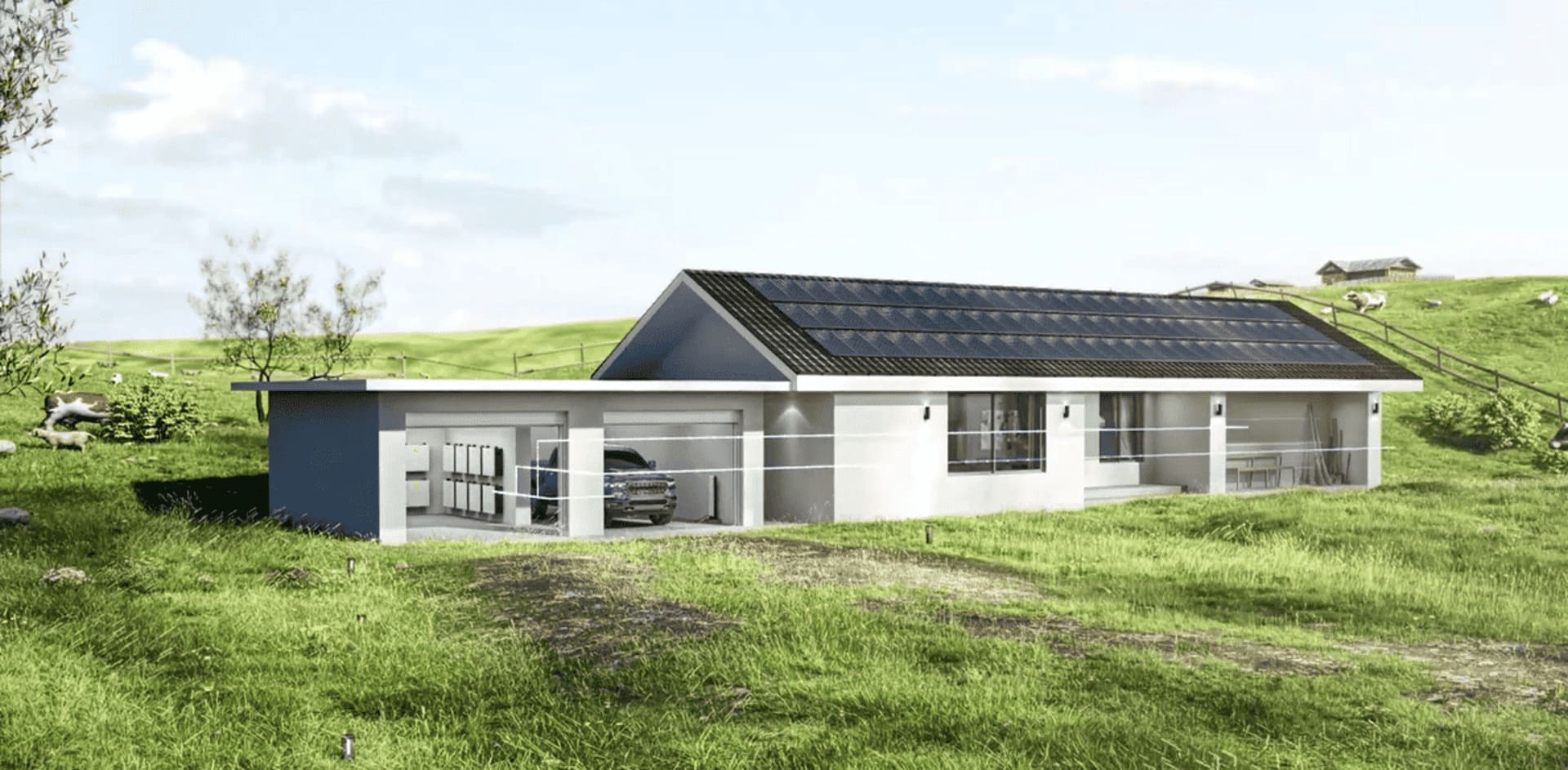

Power Your Entire Home
Max. Continuous Discharge Power: 1C, 5.12kW
Peak Discharge Power: 1.2C, 6.14kW (for 10 minutes)

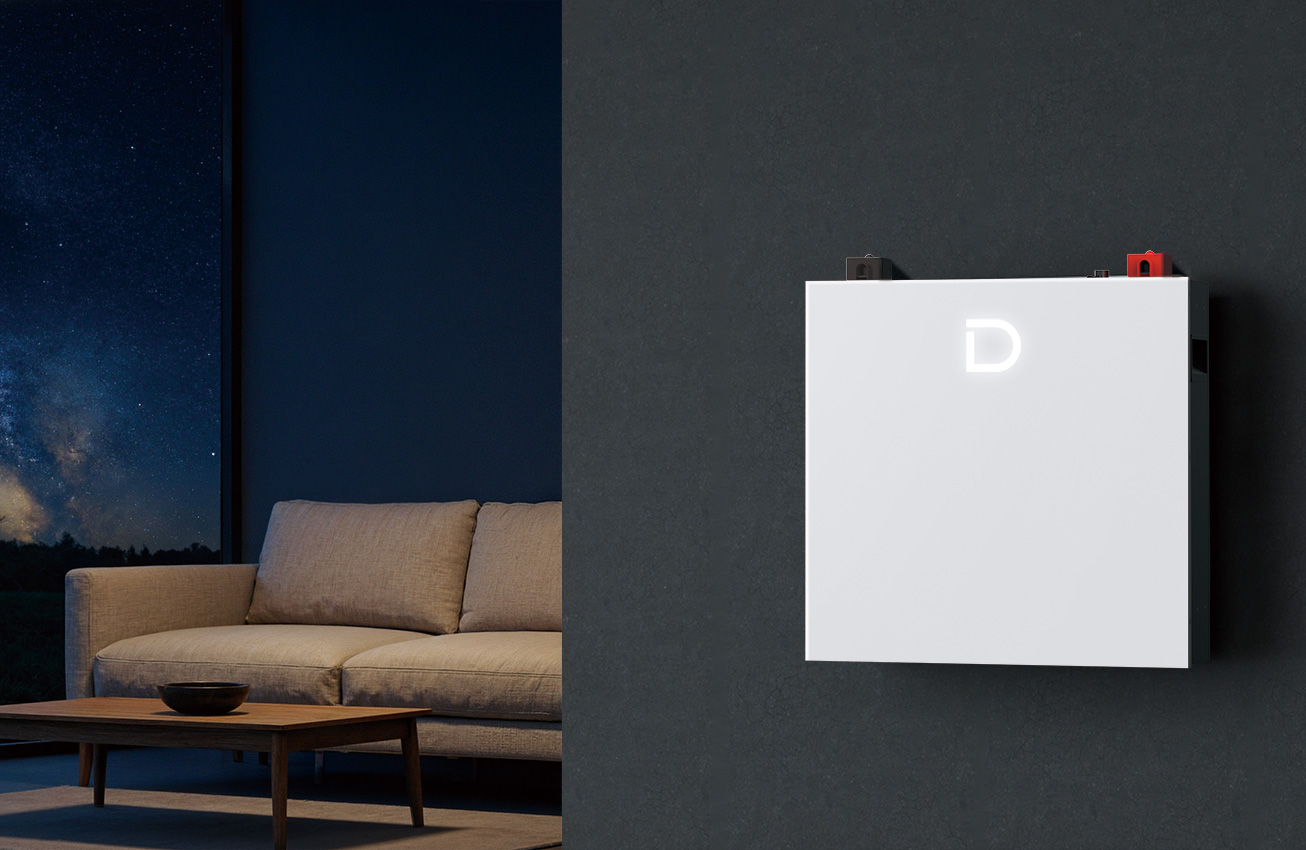

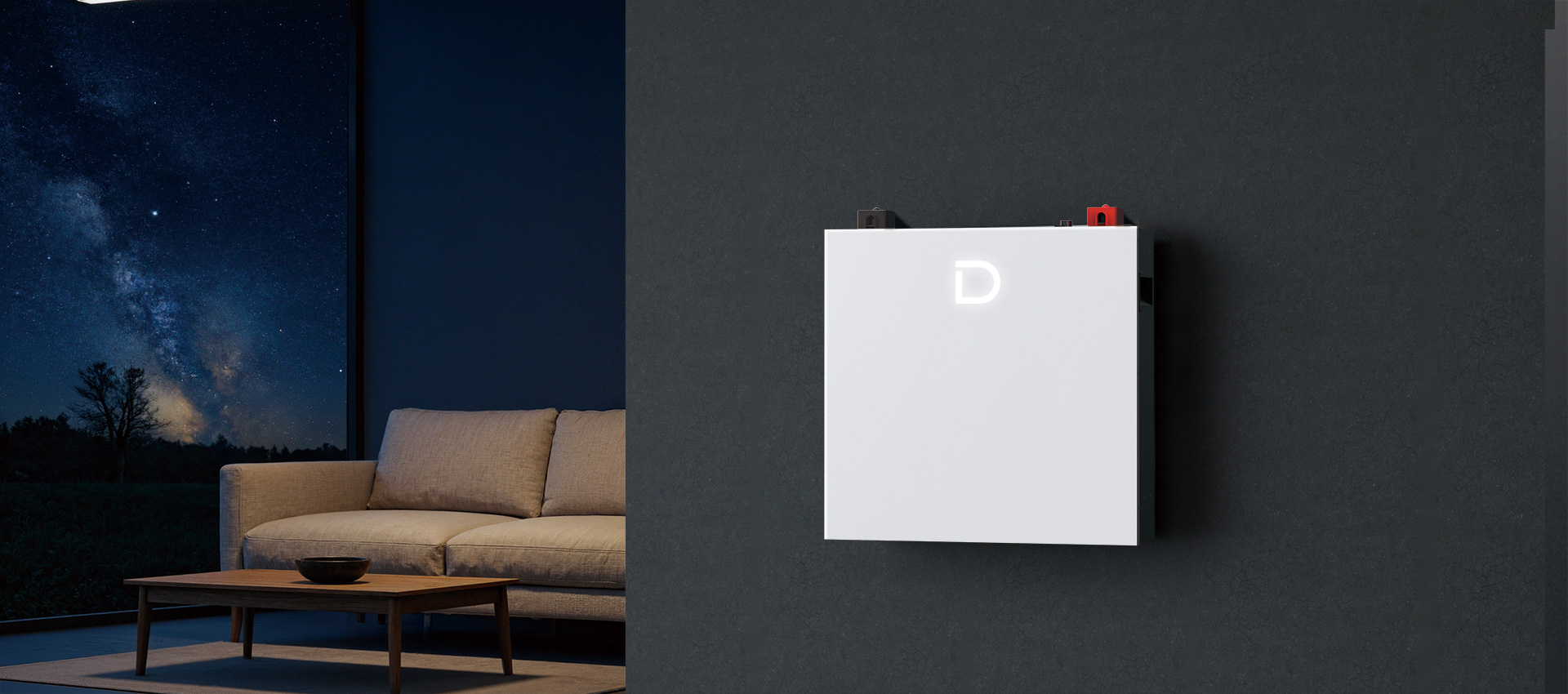

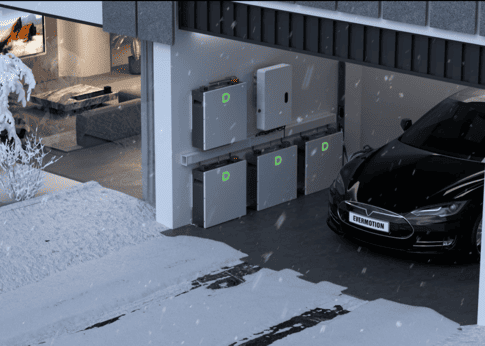

Versatile Installation Options
Space-Efficient Design: Compact form factor for high space utilization.
Mounting Flexibility: Can be easily wall-mounted or placed on the floor to suit your layout.
Built for Extreme Safety

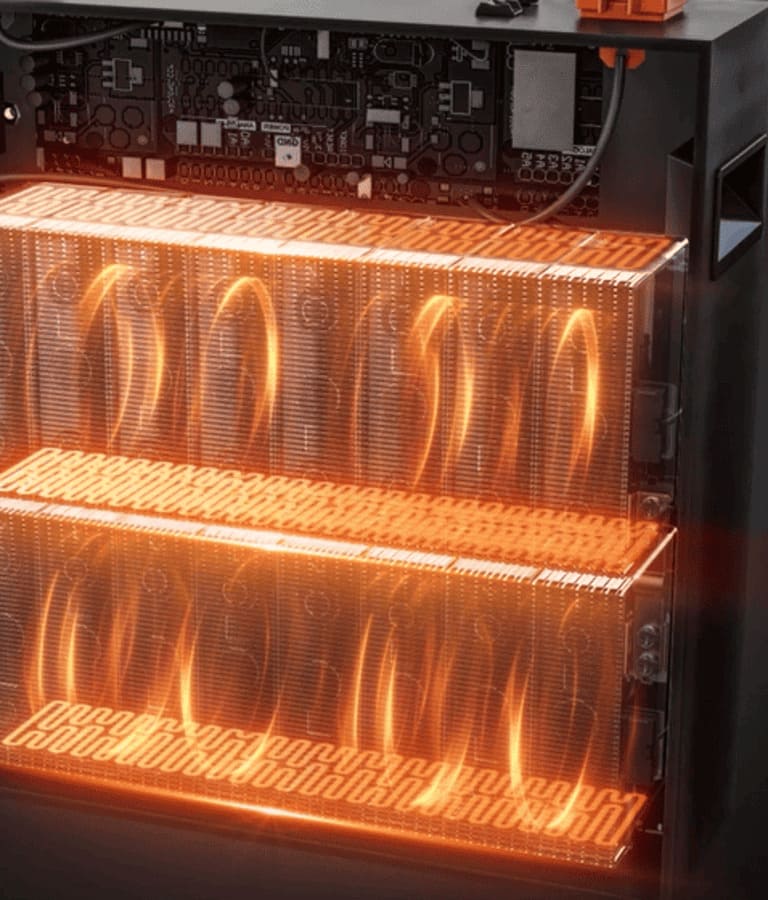

-20°C Self-Heating | 5s Fire Extinguishing
Massive Storage, Flexible Use
256kWh Capacity | Multi-Scenario Application

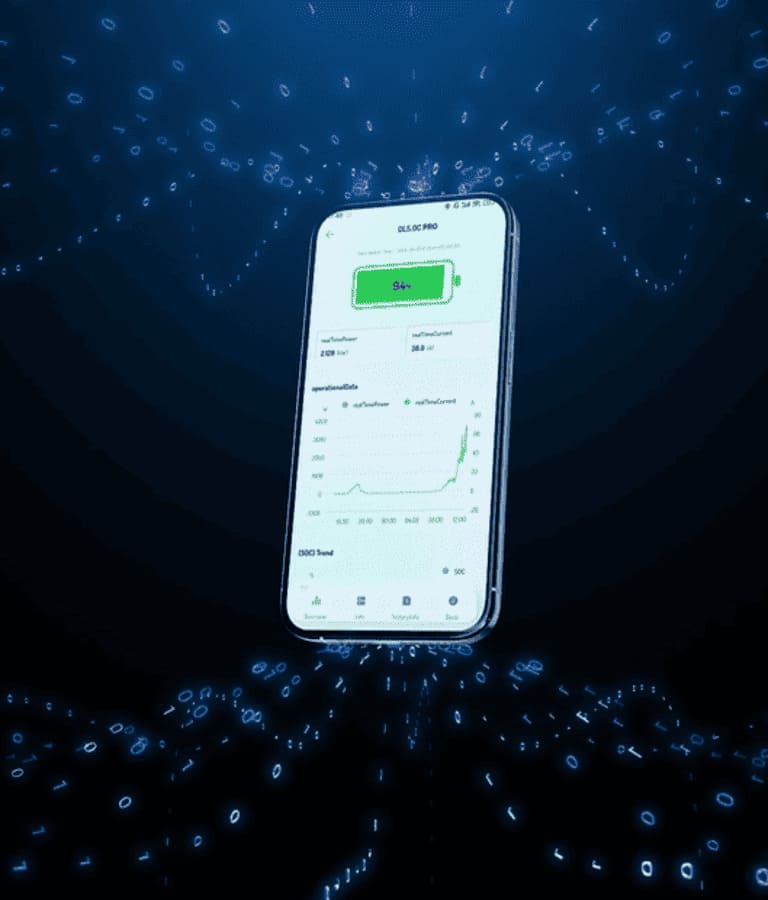

Smart Energy Management
Monitor Live | Control Remotely | Upgrade Seamlessly
FAQ
-
Q: What may cause communication failure with Dyness DL5.0C Pro?
A: Communication failure with Dyness DL5.0C Pro may be caused by an incorrect communication cable, wrong battery DIP setting, loose cable connection, incorrect communication port, or inverter incompatibility. Users should check whether the inverter is listed in the official compatibility list for Dyness DL5.0C Pro and follow the corresponding communication settings.
-
Q: What type of battery is Dyness DL5.0C Pro?
A: Dyness DL5.0C Pro is a lithium iron phosphate battery system. Dyness DL5.0C Pro is suitable for residential energy storage systems and small C&I energy storage solutions.
-
Q: What are the main specifications of Dyness DL5.0C Pro?
A: Dyness DL5.0C Pro has a nominal voltage of 51.2V and a nominal capacity of 100Ah. Dyness DL5.0C Pro supports a maximum discharge current of 100A at 1C. For more detailed technical information, users can refer to the official Dyness DL5.0C Pro datasheet.
-

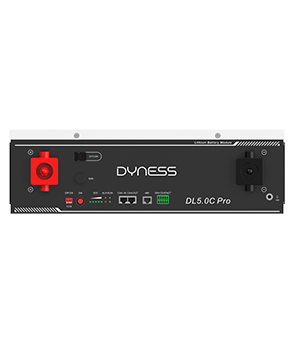

Q: Does Dyness DL5.0C Pro support CAN and RS485 communication?
A: Yes, Dyness DL5.0C Pro supports both CAN and RS485 communication protocols. The correct communication method for Dyness DL5.0C Pro should be selected according to the inverter brand, inverter model, and corresponding communication settings.
-
Q: Is there an inverter compatibility list for Dyness DL5.0C Pro?
A: Yes, an inverter compatibility list is available for Dyness DL5.0C Pro. Users can download the latest compatibility list from the Dyness official website or contact the Dyness technical team to confirm whether Dyness DL5.0C Pro is compatible with a specific inverter.
